6-chamber PVC system for doors and windows

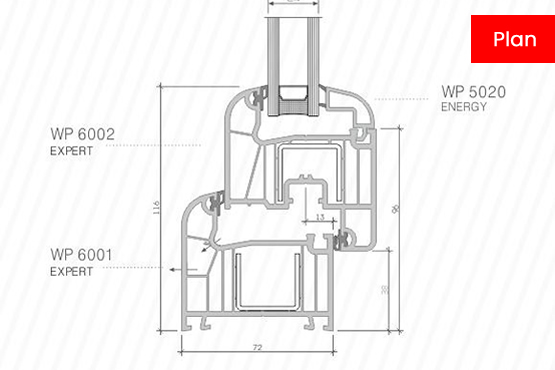

Mounting width of the frame profile - 72 mm

Mounting width of the sliding window profile - 72 and 80 mm

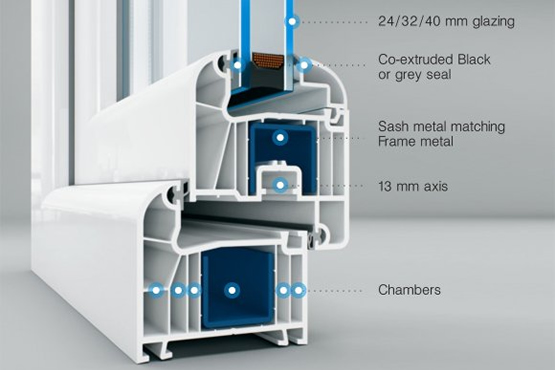

Possibility for glazing and panes of different width / 24 mm, 32 mm, 40 mm /

The system offers a variety of profiles that allow the creation of structures with different types of opening and configuration:

Window opening inwards

Door opens inwards

Door opening outwards

Constructions of 90 ° and any angle between them

Doors and windows with one wing and two wings / combined with non-opening parts /

A special mechanism - opening with sliding - VW

Additional steel profile with a width of 1.5 mm and 2.0 mm to provide the necessary strength of the windows / depending on the size /, comparable to the frame profile and the sliding window profile.

Co-extruded TPV seal in the PVC profiles in black or gray color, simplifying work during assembly

A special channel of the vent profile for faster and easier fitting of fittings

/ center of the system 13 mm /
